Quick Details

  • Light Source: LED
  • Item Type: Light Strips
  • LED Light Source: 335 or 020
  • Type: Flex LED Strips
  • Input Voltage(V): DC5V
  • Lamp Power: 14.4w
  • CRI (Ra>): 85
  • Working Temperature(℃): -22 - 68
  • Working Lifetime(Hour): 50000
  • Lamp Body Material: Copper
  • Certification: CE, RoHS, CE&ROHS
  • Emitting Color: Changeable
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: CLEN
  • Model Number: CL-BWIC020RGB16GJT-S2811
  • LED Source: sideview 020
  • LED Quanlity: 60leds/m
  • PCB width: 5mm or 10mm
  • Waterproof IP Rank: IP65
  • Warranty: 2 years
  • Color:: RGB
  • Certification:: CE&ROHS
  • Package:: 5m/reel
  • Brand Name:: 5v IC led magic strips

Packaging & Delivery

Packaging Details plastic reel and anti-static bag for ws2811 side emitting led strip
Delivery Time Shipped in 5 days after payment

 WS2811 5V 60LED Side Emitting RGB addressable LED Strip







Product Overviews

 Specification:WS2811 5V 60LED Side Emitting RGB addressable LED Strip

Product NameSide View Digital led strip
Model NumberCL-BWIC020RGB16GJT-S2811
LED Quantity60pcs SMD020/M
IC TypeWS2811 (One LED with one IC)
LED TypeSMD020 RGB 3in1
Wave lengthRed:615-630nm  Blue:465-472.5  Green:514-527
Working VoltageDC5V,
Wattage18W/M
PCB Size10MM width
PCB ColorWhite PCB,Black PCB
Light ColorRGB Addressable
IP GradeIP40 Non waterproof with adhesive tape on the back
IP67 silicone tube waterproof
Length5Meters/roll, both end of strip with power lead wires
PackagePackaged with Anti-Static Bag
CertificationCE RoHS
Warranty2 Years Warranty



Can use Min controller conrol this led strip

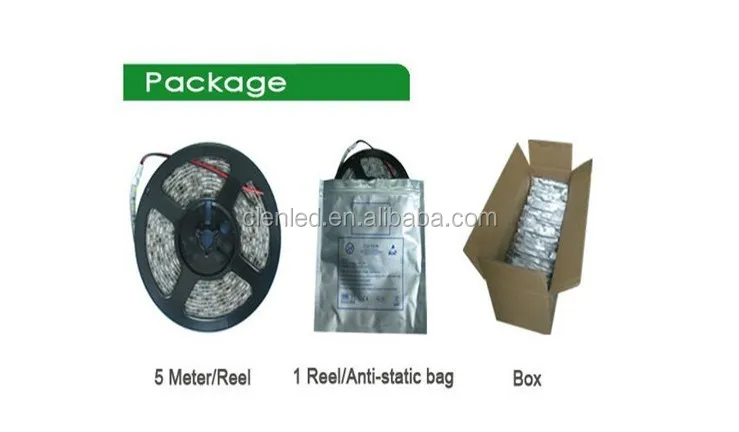

Packaging & Shipping



5 meters in a static bag and 30 rolls in a carton, carton size: 44*26*28mm.







Shipping



DHL, UPS, TNT, FEDEX or other ways door to door service.





Our Services





Please note below conditions when use LED strip



1. Please use DC5V only;



2. There are direction arrows on the PCB, arrow direction for connecting next reel strip;



3. GND not only for power wire, also as signal wire, need connect to both power and controller;



4. The Max distance between strips is 5m-10m, need use amplifier when more than 10m;



5. Every 5m strip need re-connect to power supplier, avoiding voltage drop;



6. Keep the surface of installation place clear and smooth, avoiding the strip fall off. DO NOT press the LED;



Our service



SIEMENS SMT machine with skilled workers, inspectors to control production and quality



Repair defective products and replace defactive but whole products.
